Proxmox VM

Our Proxmox server is considered a bare-metal VM server (Cloud9), the hypervisor runs directly on the hardware with no operating sysetm in between.

Creating a VM

Accessing Proxmox

  1. Navigate to https://192.168.30.8:8006/ you MUST include https://

  2. Use the following login credentials

Field Credential
Username Windows username
Password Windows password
Realm Active Directory
Language English - English

  1. Select Login

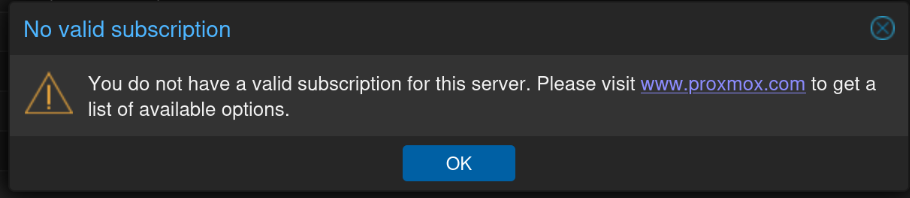

  2. Select OK
    Pasted image 20250307081836.png

Creating the VM

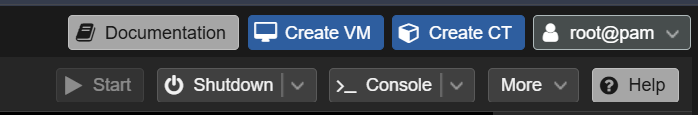

  1. Select Create VM in the top right
    Pasted image 20250221133111.png

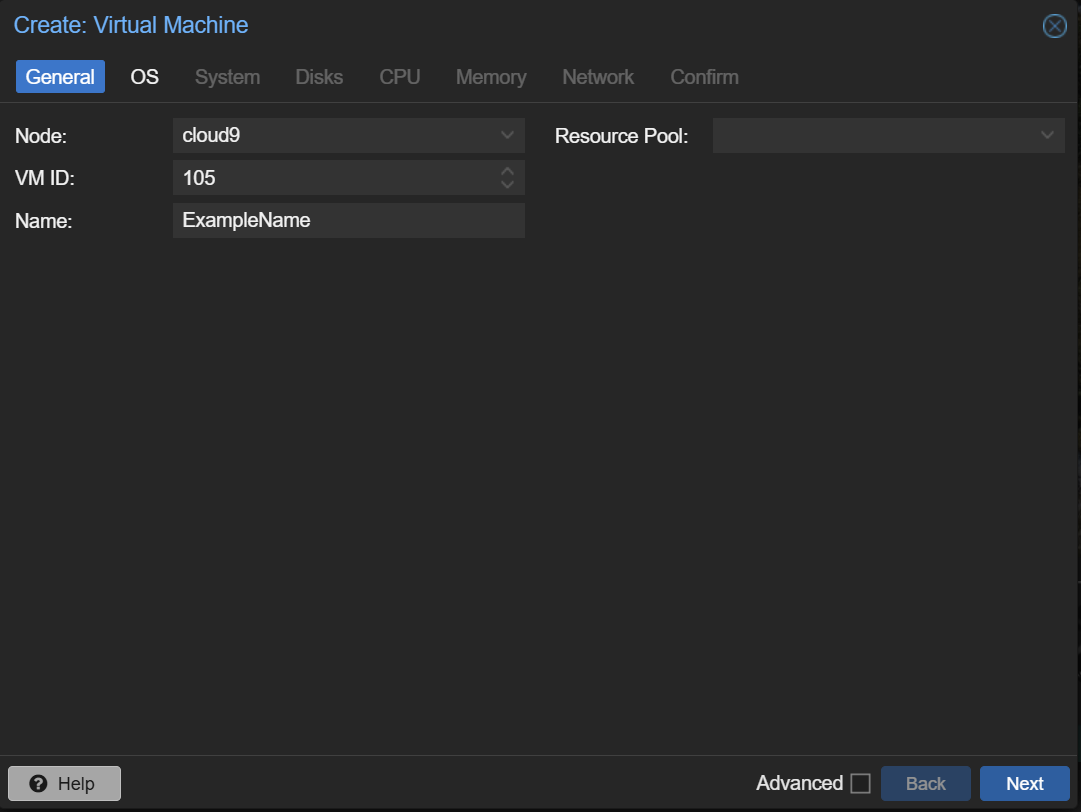

  2. Give your VM a name and select Next
    Pasted image 20250221133150.png

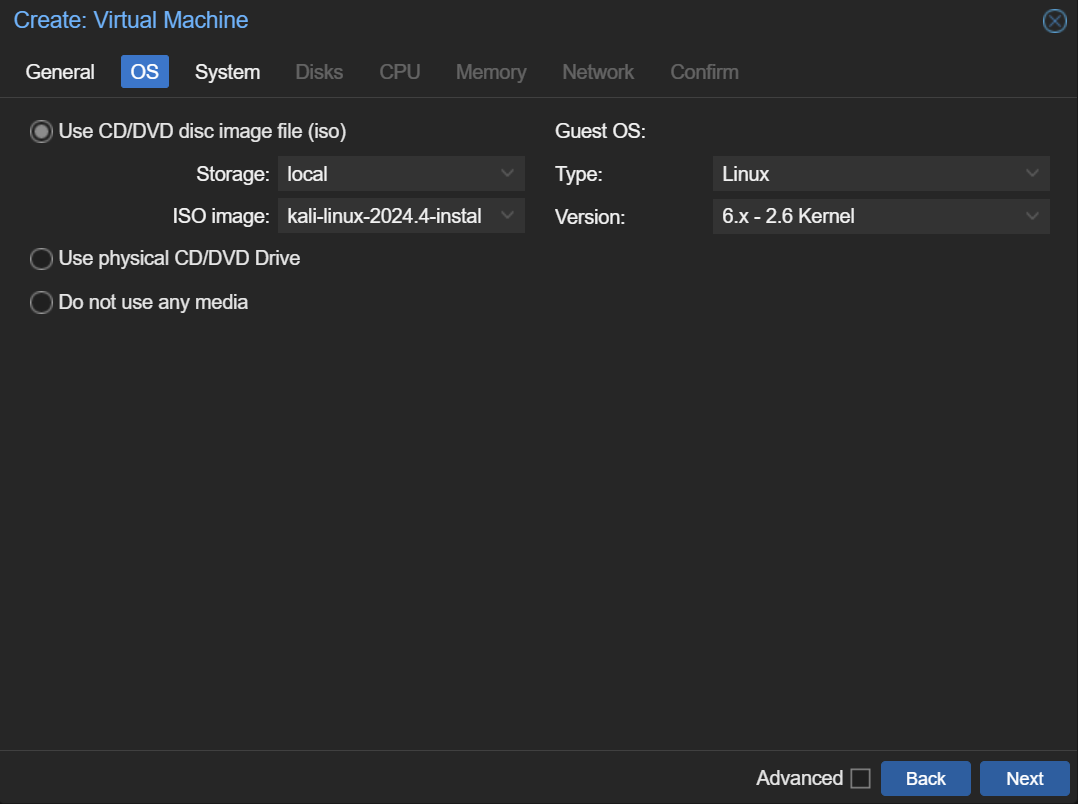

  3. Click the box next to ISO Image and select an operating system to install
    Pasted image 20250221133209.png

  4. Select the relevant type and version of your operating system and select Next

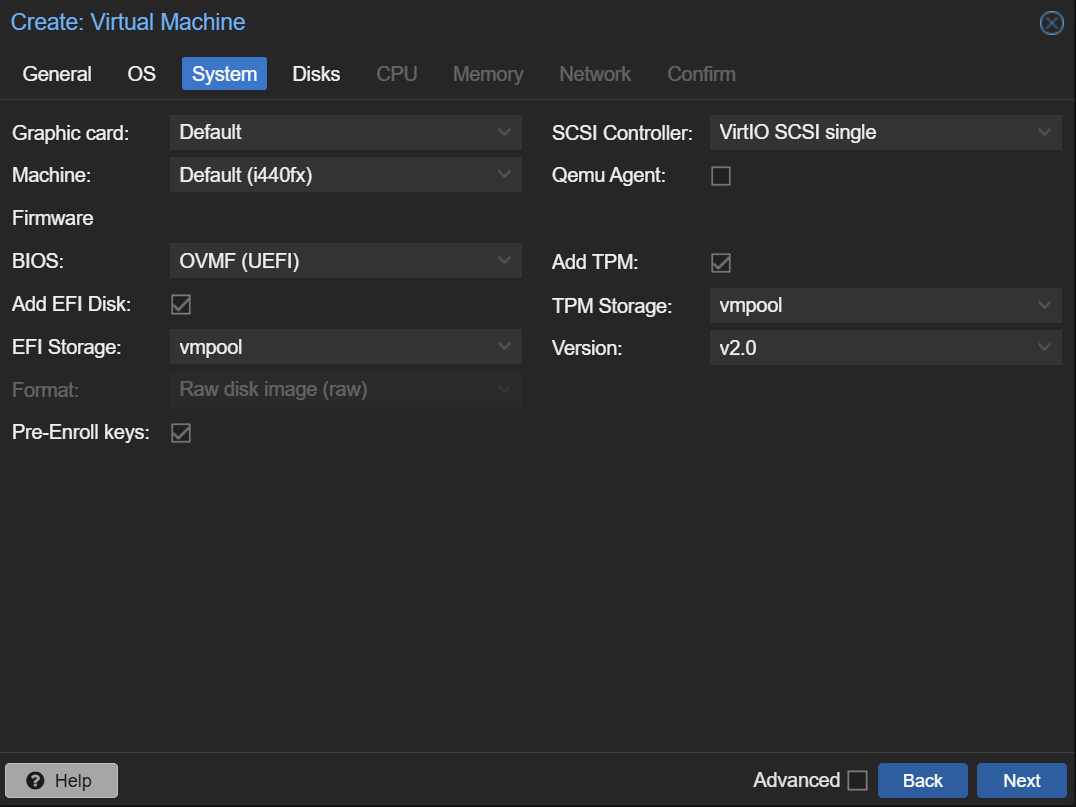

  5. Change SeaBIOS to OVMF, and use vmpool for EFI storage. Check Add TPM, and use vmpool for TPM Storage.
    Pasted image 20250221133242.png

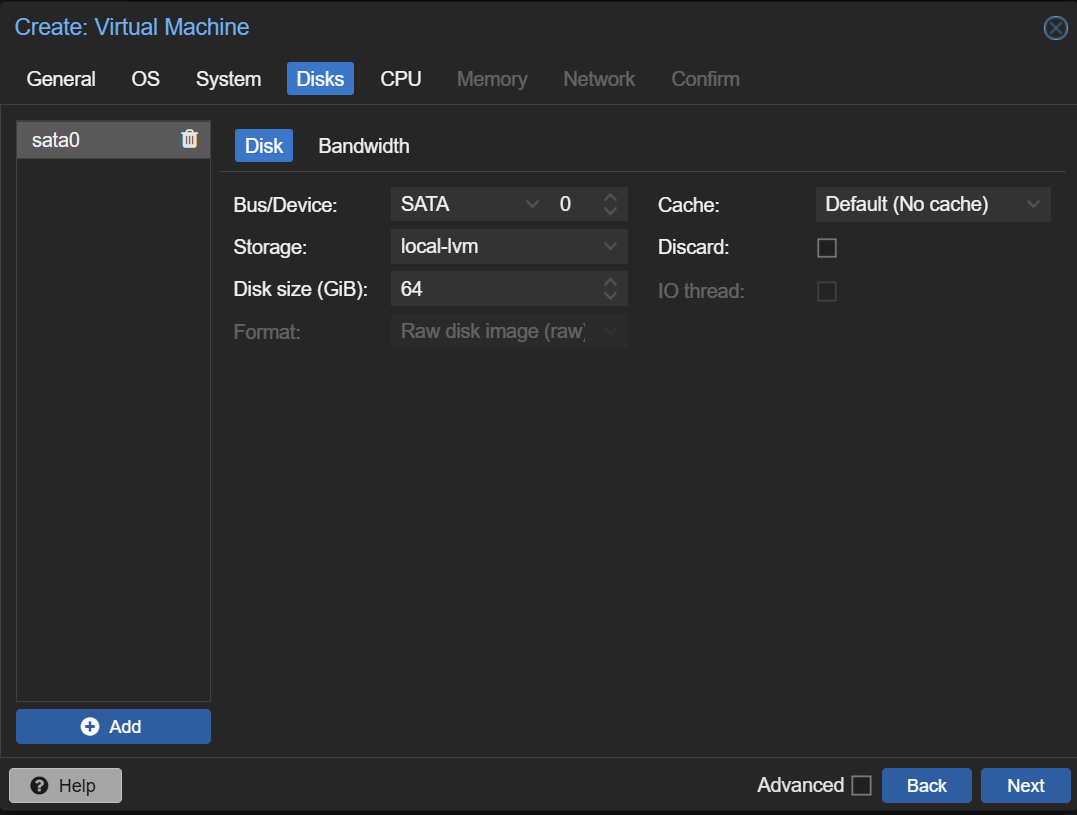

  6. Increase disk size to 64, change SCSI to SATA and select Next
    Pasted image 20250221133546.png

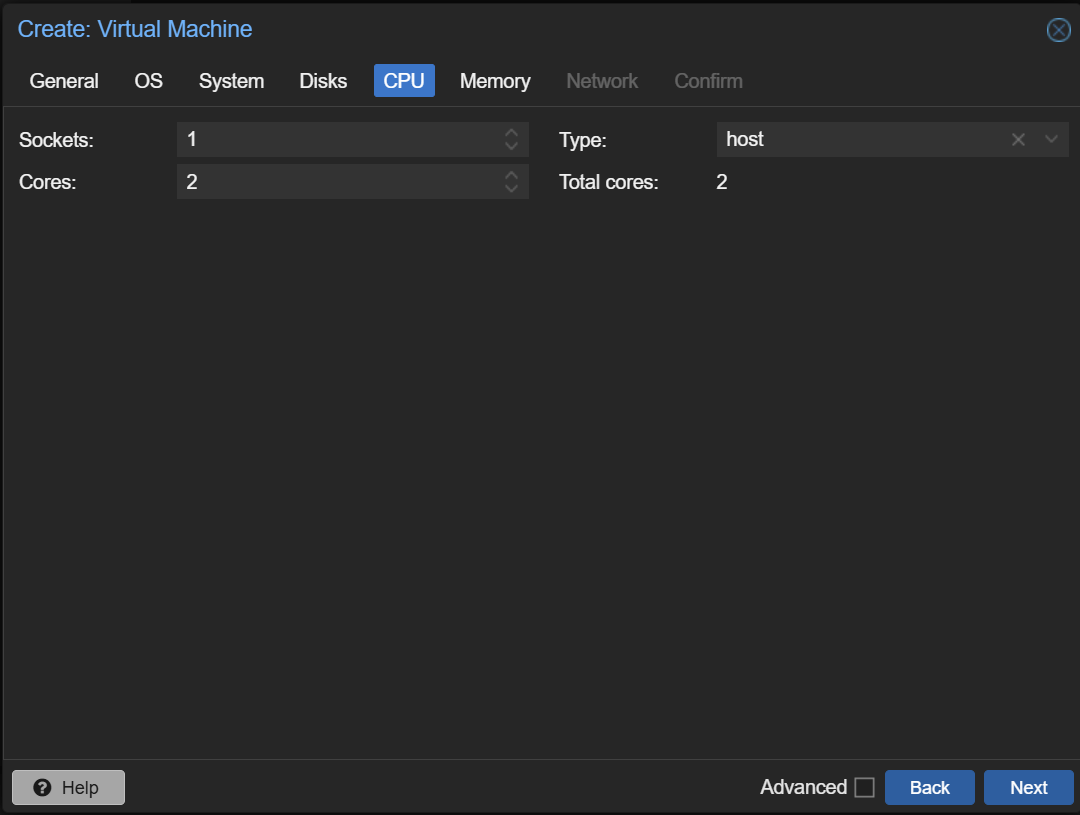

  7. Increase the number of cores to 2, and change type to host, then select Next
    Pasted image 20250221133616.png

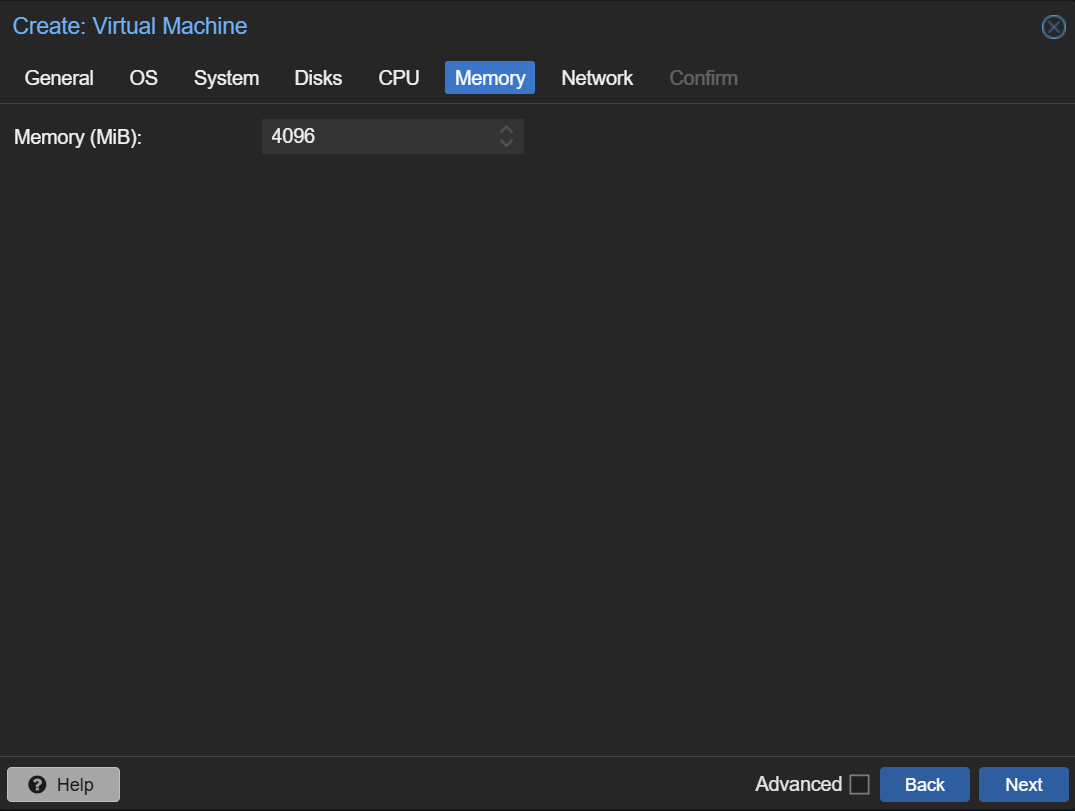

  8. Increase memory to 4096, then select Next
    Pasted image 20250221133638.png

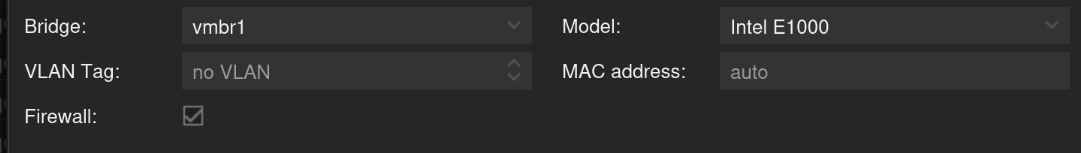

  9. In the network tab, select vmbr1 as the bridge, and Intel E1000 as the model.
    Pasted image 20250307082042.png

  10. Select Next and then Finish

Accessing Your VM

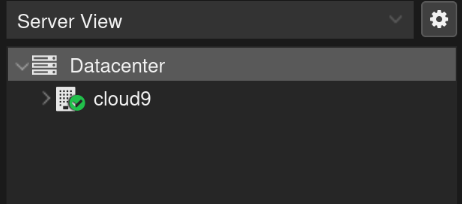

  1. On the left side of the screen, click the arrow next to Cloud9 to see the list of VMs
    Pasted image 20250307082219.png

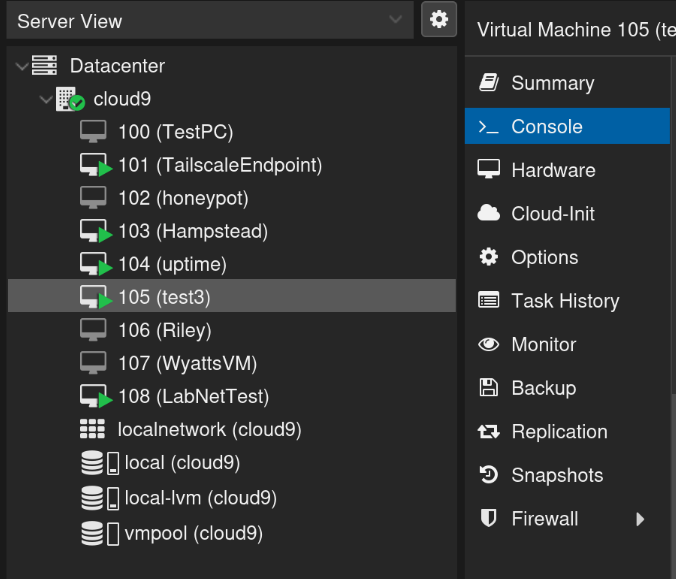

  2. Select your VM, then select Console
    Pasted image 20250307082255.png

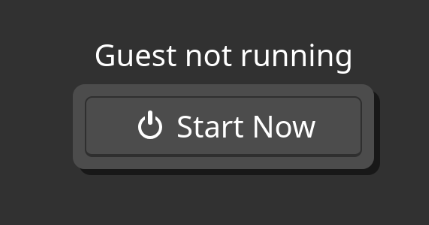

  3. Press Start Now and enjoy your VM
    Pasted image 20250307082335.png
